United Surgical

Fowler Bed

Model No.: USI-908A

Fowler Bed 2 Function Manual

Description

  •  Four Section perforated platform.
  • Platform size: : 2000L x 900W mm
  • Platform is provided with side supports to immobilize the mattress upon the platform.
  • Bumpers at four corners of the bed are provided.
  • ABS/Blow Moulded Head and Foot Panels
  • ABS/SS/MS foldable side Railings.
  • Functions: Two function i.e. Back Rest and Knee Rest.
  • Backrest, Knee-Rest through two screw system with thrust bearing individually manoeuvred by two handles.
  • Backrest, Leg section and Foot section can also be adjusted manually.
  • Four Swivel castors of dia. 100mm with diagonal locking are provided.
  • Load Bearing Capacity of 180 kg.
  • Provision for IV Rod provided at four corners of the bed.
  • Pre-treated and powder coated tubular M.S. steel frame.
  • Mattress with appropriate size to incorporate with the bed.
  • Four Section Mattress of approx. 5 inches thick and 40 kg/m³ Density and Rexene cover which is anti-static, flame retardant, disinfectant and liquid proof.
  • Optional Accessories:
    • Set of tools required for assembly of the Fowler Bed.

Model No.: USI-984HE

Fowler Bed Electric (2 Function)

Description:

  1. Advance Liner actuator system with IP54 Liquid splash protection (02 pcs. Motor, 01 pcs. Control box, 01 pcs. Handset]
  2. Heavy PP Head and Foot Panels with metal inserts along with lock and corner buffer.
  3. PP Moulded Four Pieces individual Side Rails With Inbuilt Bed Angle Indicator (Outer side as well as Inner side).
  4. Framework made-up of M.S. Tubes.
  5. 4 Section Platform Top made-up of Oval Perforated CRCA M.S. Sheet.
  6. Bed Mounted on 100mm (4”) Diagonal Locking Castors.
  7. Provision for IV Rod at 4 Locations.
  8. Urine Bag Holder on Both Sides.
  9. Calf Elevation Manually Operated.
  10. Positions Electrically Obtained/Function’s by Patient Hand Remote: Backrest, Kneerest.
  11. Finish: Pre-treated & Epoxy Powder Coated.

 Dimensions (Approx.):

  • Overall Size: 2200L x 1020W x 600H mm.
  • Angle of Back Section: 70°
  • Angle of Knee Section: 30°

 Optional Accessories:

  • 4 Section Mattress (USI – 5001C)
  • S. Telescopic I.V. Rod with 4 Hook’s (USI-5002)

Model No.: USI-984E

Fowler Bed Electric

Description:

  1. Advance Liner actuator system with IP54 Liquid splash protection (02 pcs. Motor, 01 pcs. Control box, 01 pcs. Handset]
  2. PP Head and Foot Panels along with lock and corner buffer.
  3. PP Moulded Four Pieces individual Side Rails With Inbuilt Bed Angle Indicator (Outer side as well as Inner side).
  4. Framework made-up of M.S. Tubes.
  5. 4 Section Platform Top made-up of Oval Perforated CRCA M.S. Sheet.
  6. Bed Mounted on 100mm (4”) Diagonal Locking Castors.
  7. Provision for IV Rod at 4 Locations.
  8. Urine Bag Holder on Both Sides.
  9. Calf Elevation Manually Operated.
  10. Positions Electrically Obtained/Function’s by Patient Hand Remote: Backrest, Kneerest.
  11. Finish: Pre-treated & Epoxy Powder Coated.

Dimensions (Approx.):

  • Overall Size: 2200L x 1020W x 600H mm.
  • Angle of Back Section: 70°
  • Angle of Knee Section: 30°

Optional Accessories:

  • 4 Section Mattress (USI – 5001C)
  • S. Telescopic I.V. Rod with 4 Hook’s (USI-5002)

Model No.: USI-984H

Fowler Bed Manual (2 Function)

Description:

  1. Heavy PP Head and Foot Panels with metal inserts along with lock and corner buffer.
  2. PP Moulded Four Pieces individual Side Rails With Inbuilt Bed Angle Indicator (Outer side as well as Inner side).
  3. Framework made-up of M.S. Tubes.
  4. 4 Section Platform Top made-up of Oval Perforated CRCA M.S. Sheet.
  5. Bed Mounted on 100mm (4”) Diagonal Locking Castors.
  6. Provision for IV Rod at 4 Locations.
  7. Urine Bag Holder on Both Sides.
  8. Calf Elevation Manually Operated.
  9. Positions Obtained by Separate Smooth Crank System with S.S. Foldable Handle: Backrest, Kneerest.
  10. Finish: Pre-treated & Epoxy Powder Coated.

Dimensions (Approx.):

  • Overall Size: 2170L x 1020W x 600H mm.
  • Angle of Back Section: 85°
  • Angle of Knee Section: 30°

 Optional Accessories:

  • 4 Section Mattress (USI – 5001C)
  • S. Telescopic I.V. Rod with 4 Hook’s (USI-5002)

Model No.: USI-984

Fowler Bed Manual (2 Function.)

Description:

  1. PP Head and Foot Panels along with lock and corner buffer.
  2. PP Moulded Four Pieces individual Side Rails With Inbuilt Bed Angle Indicator (Outer side as well as Inner side).
  3. Framework made-up of M.S. Tubes.
  4. 4 Section Platform Top made-up of Oval Perforated CRCA M.S. Sheet.
  5. Bed Mounted on 100mm (4”) Diagonal Locking Castors.
  6. Provision for IV Rod at 4 Locations.
  7. Urine Bag Holder on Both Sides.
  8. Calf Elevation Manually Operated.
  9. Positions Obtained by Separate Smooth Crank System with S.S. Foldable Handle: Backrest, Kneerest.
  10. Finish: Pre-treated & Epoxy Powder Coated.

Dimensions (Approx.):

  • Overall Size: 2170L x 1020W x 600H mm.
  • Angle of Back Section: 85°
  • Angle of Knee Section: 30°

Optional Accessories:

  • 4 Section Mattress (USI – 5001C)
  • S. Telescopic I.V. Rod with 4 Hook’s (USI-5002)

Model No.: USI-908H

Fowler Bed 2 Function Manual

Description:

  1. Framework made-up of M.S. Tubes.
  2. Four section 1.2 mm (18G) CRCA M.S perforated sheet top for easy breathing of mattress.
  3. Backrest section welded with MS CRCA tube of 25.4 mm x 1.6 mm (16G)
  4. Leg Section is welded with MS CRCA tube of 25.4 mm x 1.6 mm (16G) for support.
  5. The size of perforated hole: 21 mm diameter.
  6. Screw mechanism welded with ERW MS tube of size 31.75 mm X 1.2 mm (18G) is M.S. cover made from dia. 38.10 mm X 1.6 mm (16G) ERW tube.
  7. Positions Obtained by Separate Smooth Crank two Screw System with individual Foldable Handles : Backrest & Knee-rest.
  8. Calf Elevation Manually Operated.
  9. Back Rest: min 45% of the frame length.
  10. Bed frame of rectangular base made from 60 mm x 30 mm x 1.6 mm (16G) Thick ERW tube have proper support. This frame is fitted on H leg made from ERW tubes of diameter 31.75 mm X 1.2 mm (18G) thick (outer tubes) and diameter 25.4 mm x 1.2 mm (18G) thick and MS sheet having thickness 3.0 mm (11G).
  11. Bed Mounted on 125 mm (5”) Diagonal Locking High Grade Synthetic Body Castors
  12. Heavy ABS Head and Foot Panels with metal inserts along with lock for easy detachable without use of any tool and corner buffer.
  13. Provision for IV Rod at 4 Locations.
  14. Patient Working Load – 110 kg .
  15. Safe Working Load – 150 kg.
  16. MS tubular parts, linkages, flats are In-house, Pre-treated and Epoxy powder coated with coating thickness between 50 to 100 microns.

Dimensions:

  1. Overall Buffer to Buffer (without Mattress): 2140 mm L x 970 mm W x 600 mm H
  2. Overall Bed Size (without Mattress): 2090 mm L X 920 mm W X 600 mm H.
  3. Bed Platform Frame size: 2070 mm L X 910 mm W
  4. Mattress Platform Size: 1970 mm L X 790 mm W
  5. Buffer to Handle Length: 2275 mm
  6. Overall Size of Backrest: 785 mm L x 795 mm W
  7. Backrest Size (only Section): 20 mm L x 795 mm W
  8. Overall Size of Knee Rest: 470 mm L x 820 mm W
  9. Knee Rest Size (Only Section): 380 mm L x 795 mm W
  10. Overall Size of Leg Rest: 610 mm L x 795 mm W
  11. Leg Rest Size (Only Section): 610 mm L x 795 mm W.
  12. Size of Fix Section 200 mm L x 820 mm W.
  13. Angle of Back Section: 65°
  14. Angle of Knee Section: 45°

Accessories:

  1. 4 Section PU Foam Mattress of 40 density, identical size of the bed platform. Provided with Water Resistance and Fire Retardant Cover.
  2. SS. Telescopic I.V. Rod with 4 Hook’s
  3. Urine Bag Holder.
  4. Chart holder  is MS made.
  5. Provided with collapsible Railing.

Quality Standard Certification:

  • All the certificates as per “General Requirement for all items” under “Product & Manufacturer Quality Standards”.
  • In addition, PU foam complying to IS 7933 standard from NABL accredited laboratory.

Model No.: USI-908

Fowler Bed 2 Function with Side Rails

Description:

  1. Framework made-up of M.S. Tubes.
  2. Bed Top made of Four section 1.2 mm (18G) CRCA M.S perforated sheet for easy breathing of mattress.
  3. Backrest section welded with MS CRCA tube of 25.4 mm x 1.6 mm (16G).
  4. Leg Section is welded with MS CRCA tube of 25.4 mm x 1.6 mm (16G) for support.
  5. Screw mechanism welded with ERW MS tube of size 31.75 mm X 1.2 mm (18G) is M.S. cover made from dia. 38.10 mm X 1.6 mm (16G) ERW tube.
  6. Positions Obtained by Separate Smooth Crank two Screw System with individual Foldable Handles : Backrest & Knee-rest.
  7. Calf Elevation Manually Operated.
  8. Back Rest: 45% of the frame length.
  9. Bed frame made from 60 mm x 30 mm x 1.6 mm (16G) Thick ERW tube have proper support.
  10. H-type legs made from ERW tubes of diameter 31.75 mm X 1.2 mm (18G) thick (outer tubes) and diameter 25.4 mm x 1.2 mm (18G) thick.
  11. Bed Mounted on 125 mm (5”) Diagonal Locking High Grade Synthetic Body Castors
  12. ABS material Head and Foot Panels along with lock for easy detachable without use of any tool and corner buffer.
  13. Provision for IV Rod at 4 Locations.
  14. Patient Working Load – 110 kg .
  15. Safe Working Load – 150 kg.
  16. MS tubular parts, linkages, flats are In-house, Pre-treated and Epoxy powder coated with coating thickness between 50 to 100 microns.

Dimensions:

  1. Overall Buffer to Buffer (without Mattress): 2150 mm L x 970 mm W x 600 mm H
  2. Overall Bed Size (without Mattress): 2100 mm L X 920 mm W X 600 mm H.
  3. Bed Platform Frame size: 2080 mm L X 910 mm W
  4. Mattress Platform Size: 1980 mm L X 790 mm W
  5. Buffer to Handle Length: 2275 mm
  6. Overall Size of Backrest: 795 mm L x 795 mm W
  7. Backrest Size (only Section): 730 mm L x 795 mm W
  8. Overall Size of Knee Rest: 480 mm L x 820 mm W
  9. Knee Rest Size (Only Section): 390 mm L x 795 mm W
  10. Overall Size of Leg Rest: 620 mm L x 795 mm W
  11. Size of Fix Section 210 mm L x 820 mm W.
  12. Angle of Back Section: 65°
  13. Angle of Knee Section: 45°

Accessories:

  1. 4 Section PU Foam Mattress of 40 density, identical size of the bed platform. Provided with Water Resistance and Fire Retardant Cover.
  2. SS. Telescopic I.V. Rod with 4 Hook’s
  3. Urine Bag Holder.
  4. Chart holder  is MS made.
  5. Provided with collapsible Railing.

Quality Standard Certification:

  • All the certificates as per “General Requirement for all items” under “Product & Manufacturer Quality Standards”.
  • In addition, PU foam complying to IS 7933 standard from NABL accredited laboratory.

Model No.: USI-1053

Fowler Bed 2 funct. Manual

Description:

  1. S. Laminated Head and Foot Panels.
  2. Framework made-up of M.S. Tubes.
  3. 4 Section Platform Top made-up of Oval Perforated CRCA M.S. Sheet.
  4. Bed Mounted on 100mm (4”) Diagonal Locking Castors.
  5. Provision for IV Rod at 4 Locations.
  6. Urine Bag Holder on Both Sides.
  7. Calf Elevation Manually Operated.
  8. Positions Obtained by Separate Smooth Crank System with S.S. Foldable Handle: Backrest, Kneerest.
  9. Finish: Pre-treated & Epoxy Powder Coated.

Dimensions (Approx.):

  • Overall Size: 2170L x 1020W x 600H mm.
  • Angle of Back Section: 85°
  • Angle of Knee Section: 30°

Optional Accessories:

  • 4 Section Mattress (USI-5001C)
  • S. Telescopic I.V. Rod with 4 Hook’s (USI-5002)
  • Collapsible Safety Side-Rails, Stainless Steel Pipe (USI-5020) / Aluminum (USI-5021)

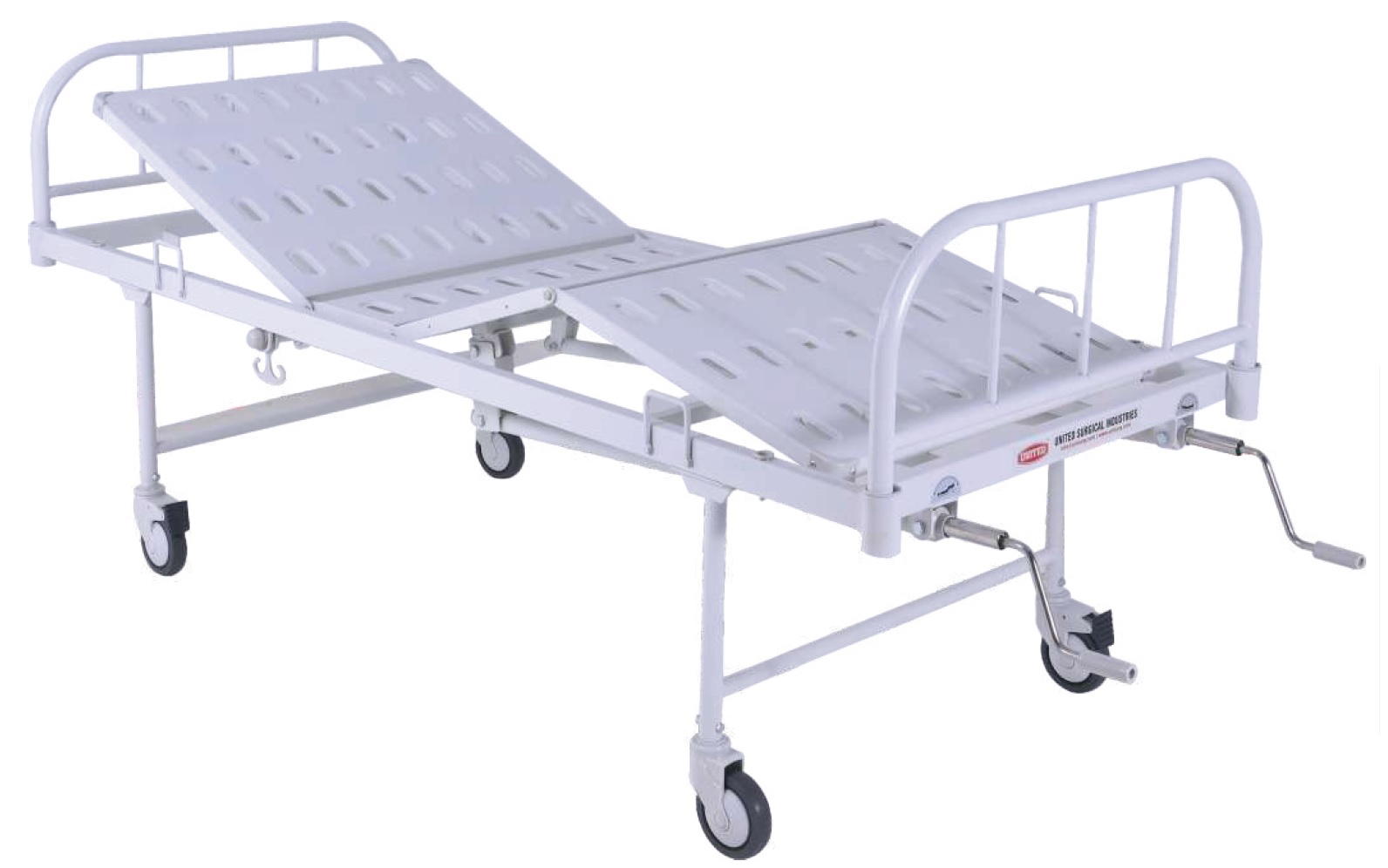

Model No.: USI-1002

Fowler Bed Manual

Description:

  1. Framework made-up of M.S. Tubes.
  2. Bed Top made of Four section 1.2 mm (18G) CRCA M.S perforated sheet for easy breathing of mattress.
  3. Backrest section welded with MS CRCA tube of 25.4 mm x 1.6 mm (16G).
  4. Leg Section is welded with MS CRCA tube of 25.4 mm x 1.6 mm (16G) for support.
  5. Screw mechanism welded with ERW MS tube of size 31.75 mm X 1.2 mm (18G) is M.S. cover made from dia. 38.10 mm X 1.6 mm (16G) ERW tube.
  6. Positions Obtained by Separate Smooth Crank two Screw System with individual Foldable Handles : Backrest & Knee-rest.
  7. Calf Elevation Manually Operated.
  8. Back Rest: 45% of the frame length.
  9. Bed frame made from 60 mm x 30 mm x 1.6 mm (16G) Thick ERW tube have proper support.
  10. H-type legs made from ERW tubes of diameter 31.75 mm X 1.2 mm (18G) thick (outer tubes) and diameter 25.4 mm x 1.2 mm (18G) thick.
  11. Bed Mounted on 125 mm (5”) Diagonal Locking High Grade Synthetic Body Castors
  12. Head and Foot Panel are made of Mild Steel (MS) round Brackets of size OD 50mm x ID 48mm which are detachable without use of any tools.
  13. Provision for IV Rod at 4 Locations.
  14. Patient Working Load – 110 kg .
  15. Safe Working Load – 150 kg.
  16. MS tubular parts, linkages, flats are In-house, Pre-treated and Epoxy powder coated with coating thickness between 50 to 100 microns.

Dimensions:

  1. Overall Buffer to Buffer (without Mattress): 2150 mm L x 970 mm W x 600 mm H
  2. Overall Bed Size (without Mattress): 2100 mm L X 920 mm W X 600 mm H.
  3. Bed Platform Frame size: 2080 mm L X 910 mm W
  4. Mattress Platform Size: 1980 mm L X 790 mm W
  5. Buffer to Handle Length: 2275 mm
  6. Overall Size of Backrest: 795 mm L x 795 mm W
  7. Backrest Size (only Section): 730 mm L x 795 mm W
  8. Overall Size of Knee Rest: 480 mm L x 820 mm W
  9. Knee Rest Size (Only Section): 390 mm L x 795 mm W
  10. Overall Size of Leg Rest: 620 mm L x 795 mm W
  11. Size of Fix Section 210 mm L x 820 mm W.
  12. Angle of Back Section: 65°
  13. Angle of Knee Section: 45°

Accessories:

  1. 4 Section PU Foam Mattress of 40 density, identical size of the bed platform. Provided with Water Resistance and Fire Retardant Cover.
  2. SS. Telescopic I.V. Rod with 4 Hook’s
  3. Urine Bag Holder.
  4. Chart holder  is MS made.
  5. Provided with collapsible Railing.

Quality Standard Certification:

  • All the certificates as per “General Requirement for all items” under “Product & Manufacturer Quality Standards”.
  • In addition, PU foam complying to IS 7933 standard from NABL accredited laboratory.
