Semi-Fowler Bed

Model No.: USI-965E

Semi-Fowler Bed Electric

Description:

  1. Advance Liner actuator system with IP54 Liquid splash protection (01 pcs. Motor, 01 pcs. Control box, 01 pcs. Handset]
  2. PP Head and Foot Panels with metal inserts along with lock and corner buffer.
  3. Framework made-up of M.S. Tubes.
  4. 2 Section Platform Top made-up of Oval Perforated CRCA M.S. Sheet.
  5. Bed Mounted on PVC Stumps/ Shoes.
  6. Provision for IV Rod at 4 Locations.
  7. Urine Bag Holder on Both Sides.
  8. Positions Electrically Obtained/Function’s by Patient Hand Remote: Backrest.
  9. Finish: Pre-treated & Epoxy Powder Coated.

Dimensions (Approx.):

  • Overall Size: 2110L x 950W x 600H mm.
  • Angle of Back Section: 85°

Optional Accessories:

  • 2 Section Mattress (USI-5001B)
  • S. Telescopic I.V. Rod with 4 Hook’s (USI-5002)
  • Collapsible Safety Side-Rails, Stainless Steel Pipe (USI-5020) / Aluminum (USI-5021)
  • 100mm (4”) Diagonal locking Castors

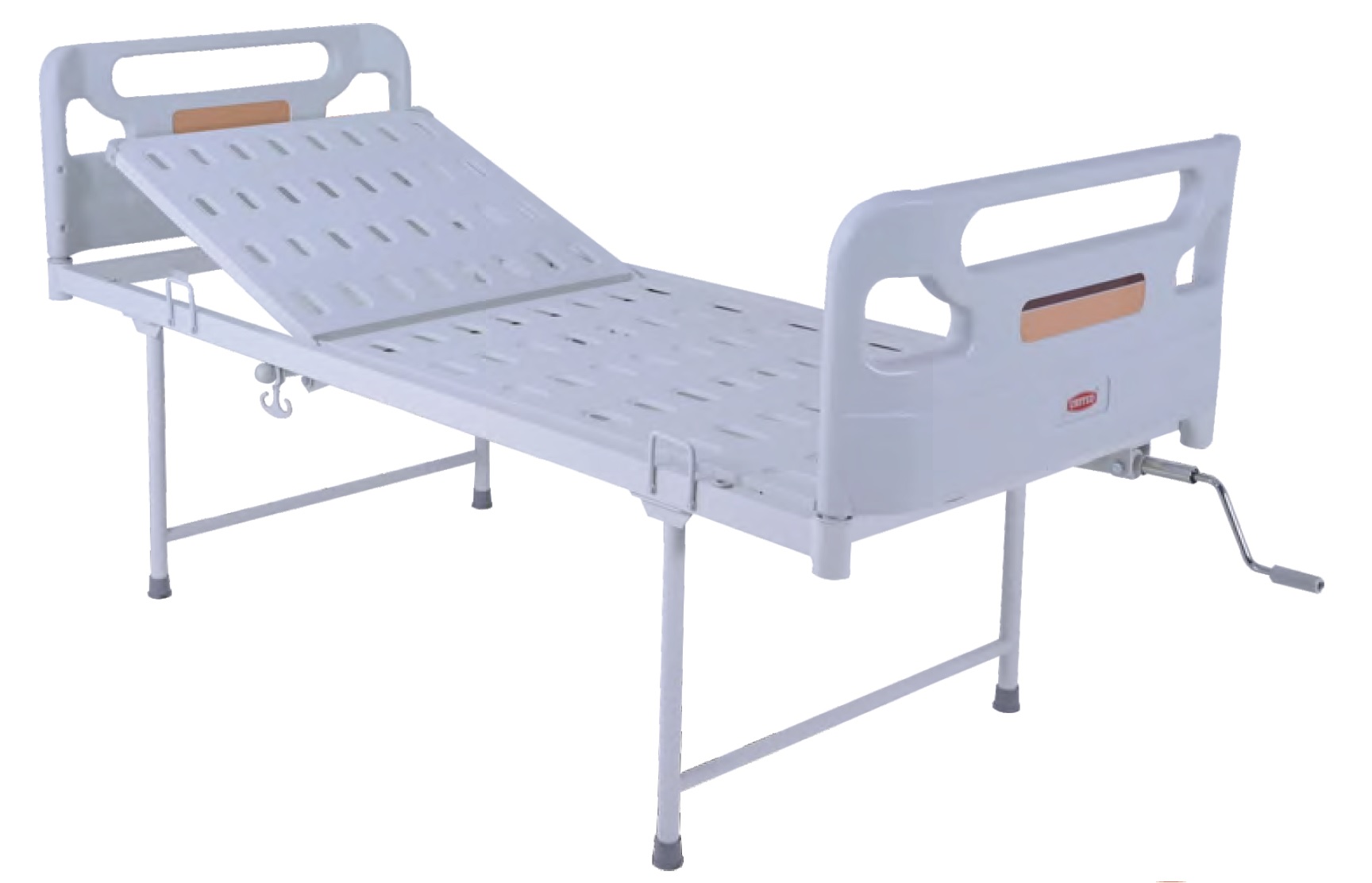

Model No.: USI-965H

Semi-Fowler Bed Manual (1 Function)

Description:

  1. Heavy PP Head and Foot Panels with metal inserts along with lock and corner buffer.
  2. Framework made-up of M.S. Tubes.
  3. 2 Section Platform Top made-up of Oval Perforated CRCA M.S. Sheet.
  4. Bed Mounted on PVC Stumps/ Shoes.
  5. Provision for IV Rod at 4 Locations.
  6. Urine Bag Holder on Both Sides.
  7. Positions Obtained by Smooth Crank System with S.S. Foldable Handle: Backrest.
  8. Finish: Pre-treated & Epoxy Powder Coated.

Dimensions (Approx.):

  • Overall Size: 2110L x 950W x 600H mm.
  • Angle of Back Section: 85°

Optional Accessories:

  • 2 Section Mattress (USI-5001B)
  • S. Telescopic I.V. Rod with 4 Hook’s (USI-5002)
  • Collapsible Safety Side-Rails, Stainless Steel Pipe (USI-5020) / Aluminum (USI-5021)
  • 100mm (4”) Diagonal locking Castors

Model No.: USI-965

Semi Flower Bed With Side Rail

Description:

  1. Type of bed: Semi Fowler.
  2. 02 Section platform of the bed.
  3. Availability of back rest section.
  4. Leg section linkage welded with MS CRCA tube (16 G).
  5. Backrest section linkage welded with MS CRCA tube (14 G).
  6. Manual adjustments- Backrest through two screw systems with thrust bearings individually maneuvered by handle for semi fowler bed.
  7. Back rest-min 45 % of the frame length.
  8. The bed has head & foot panels detachable by hand without need of any tool.
  9. Screw mechanism welded with ERW MS tube (18 G) in M.S. cover made from (16 G) ERW tube.
  10. Material of handle: MS.
  11. Provision of castors- H’ Type Legs with 600 mm Height with 125 mm(5″) dia High Grade Synthetic Body Castors, two with brake, two w/o brake.
  12. Number of hooks in Telescopic I V Pole: 2 nos.
  13.  For Semi Fowler bed number of sections in mattress: 2 nos.
  14. Provision of collapsible Railing.
  15. Finishing & workmanship of high standard.
  16. All corners are rounded off so that there shall be no sharp corners and holes should be burr free.
  17. Saline rod provision: Four locations on the bed platform to hold stainless steel Telescopic Saline rod 12 mm dia. with 15.87 mm dia. x 1.2 mm (18 G) stainless steel.
  18. Provision for mounting of syringe pump outer covering tube with a knob to mount syringe pump
  19. Size of Buffer: 100 mm.
  20. Mattress Platform Surface thickness : 1.2 mm.
  21. Raised backrest angle: 65 degree.
  22. Dimensions for Fitting of frame ERW tubes diameter 31.75 mm x 1.2 mm (18 G) thick and diameter 22.22 mm x 1.2 mm (18 G) thick and MS sheet having thickness 3.0 mm (11 G).
  23. Diameter of Four corner rubber buffers : 75 mm.
  24. Diameter of MS tubular : 31 mm.
  25. Material of head and foot panels : MS tubular.
  26. Colour of mattress cover : Blue.
  27. Bed frame tube size : 60 mm x 30 mm x 1.6 mm (16G).
  28. Material of collapsing railing : MS.
  29. Types of collapsing railing : Manual.
  30. Patient Working Load : 135 kgs.
  31. Pre treated & Epoxy powder coated.
  32. Supplied with SS 304 grade IV rod along with the bed

Dimensions:

  1. Overall Length of bed : 2100 mm.
  2. Overall width of bed : 950 mm.
  3. Bed Platform frame size : 2070 mm L x 910 mm W.
  4. Mattress Platform size : 1970 mm L x 790 mm W.
  5. Overall length of Back Rest : 920 mm.
  6. Overall width of Back Rest : 910 mm.

Accessories & Mattress:

  1. Collapsible side rails
  2. MS Powder coated urine Bag Holder – 1 no.
  3. Saline Stand- 1 no.
  4. Chart holder MS made/ moulded.
  5. Two section mattresses with cover made of PVC material, waterproof, fire-retardant, breathable fabric separated by zip on three sides with lower cover part made of Rexene.
  6. Thickness of PU foam of mattress : 4 inch.
  7. Density of PU foam of mattress : 40

Quality Standard Certification:

  1. All the certificates as “General Requirement for all items” under “Product & Manufacturer Quality Standards”.
  2. Certificates, PU foam complying to IS 7933 standard from  NABL accredited laboratory.

Model No.: USI-1003

Semi-Fowler Bed Manual (1 Function.)

Description:

  1. S.S Laminated Head and Foot Panels.
  2. Framework made-up of M.S. Tubes.
  3. 2 Section Platform Top made-up of Oval Perforated CRCA M.S. Sheet.
  4. Bed Mounted on PVC Stumps/ Shoes.
  5. Provision for IV Rod at 4 Locations.
  6. Urine Bag Holder on Both Sides.
  7. Positions Obtained by Smooth Crank System with S.S. Foldable Handle: Backrest.
  8. Finish: Pre-treated & Epoxy Powder Coated.

Dimensions (Approx.):

  • Overall Size: 2110L x 950W x 600H mm.
  • Angle of Back Section: 85°

Optional Accessories:

  • 2 Section Mattress (USI-5001B)
  • S. Telescopic I.V. Rod with 4 Hook’s (USI-5002)
  • Collapsible Safety Side-Rails, Stainless Steel Pipe (USI-5020) / Aluminum (USI-5021)
  • 100mm (4”) Diagonal locking Castors

Model No.: USI-1051

Semi-Fowler Bed Manual

Description:

  1. Type of bed: Semi Fowler.
  2. 02 Section platform of the bed.
  3. Availability of back rest section.
  4. Leg section linkage welded with MS CRCA tube (16 G).
  5. Backrest section linkage welded with MS CRCA tube (14 G).
  6. Manual adjustments- Backrest through two screw systems with thrust bearings individually maneuvered by handle for semi fowler bed.
  7. Back rest-min 45 % of the frame length.
  8. The bed has head & foot panels detachable by hand without need of any tool.
  9. Screw mechanism welded with ERW MS tube (18 G) in M.S. cover made from (16 G) ERW tube.
  10. Material of handle: MS.
  11. Provision of castors- H’ Type Legs with 600 mm Height with 125 mm(5″) dia High Grade Synthetic Body Castors, two with brake, two w/o brake.
  12. Number of hooks in Telescopic I V Pole: 2 nos.
  13.  For Semi Fowler bed number of sections in mattress: 2 nos.
  14. Provision of collapsible Railing.
  15. Finishing & workmanship of high standard.
  16. All corners are rounded off so that there shall be no sharp corners and holes should be burr free.
  17. Saline rod provision: Four locations on the bed platform to hold stainless steel Telescopic Saline rod 12 mm dia. with 15.87 mm dia. x 1.2 mm (18 G) stainless steel.
  18. Provision for mounting of syringe pump outer covering tube with a knob to mount syringe pump
  19. Size of Buffer: 100 mm.
  20. Mattress Platform Surface thickness : 1.2 mm.
  21. Raised backrest angle: 65 degree.
  22. Dimensions for Fitting of frame ERW tubes diameter 31.75 mm x 1.2 mm (18 G) thick and diameter 22.22 mm x 1.2 mm (18 G) thick and MS sheet having thickness 3.0 mm (11 G).
  23. Diameter of Four corner rubber buffers : 75 mm.
  24. Diameter of MS tubular : 31 mm.
  25. Material of head and foot panels : MS tubular.
  26. Colour of mattress cover : Blue.
  27. Bed frame tube size : 60 mm x 30 mm x 1.6 mm (16G).
  28. Material of collapsing railing : MS.
  29. Types of collapsing railing : Manual.
  30. Patient Working Load : 135 kgs.
  31. Pre treated & Epoxy powder coated.
  32. Supplied with SS 304 grade IV rod along with the bed

Dimensions:

  1. Overall Length of bed : 2100 mm.
  2. Overall width of bed : 950 mm.
  3. Bed Platform frame size : 2070 mm L x 910 mm W.
  4. Mattress Platform size : 1970 mm L x 790 mm W.
  5. Overall length of Back Rest : 920 mm.
  6. Overall width of Back Rest : 910 mm.

Accessories & Mattress:

  1. Collapsible side rails
  2. MS Powder coated urine Bag Holder – 1 no.
  3. Saline Stand- 1 no.
  4. Chart holder MS made/ moulded.
  5. Two section mattresses with cover made of PVC material, waterproof, fire-retardant, breathable fabric separated by zip on three sides with lower cover part made of Rexene.
  6. Thickness of PU foam of mattress : 4 inch.
  7. Density of PU foam of mattress : 40

Quality Standard Certification:

  1. All the certificates as “General Requirement for all items” under “Product & Manufacturer Quality Standards”.
  2. Certificates, PU foam complying to IS 7933 standard from  NABL accredited laboratory.
