Labour/Delivery Table's

Model No.: USI - E7

LDR BED (Electric)

Description:

  1. Advance Liner actuator system with IP54 Liquid splash protection (03 pcs. Motor, 01 pcs. Control box, 01 pcs. Handset]
  2. PP Head Panels with metal inserts along with lock and corner buffer.
  3. PP Moulded Two Pieces individual Side Rails.
  4. Tubular framework mounted on 125mm (5”) Central locking castors.
  5. Three-section top made of Bakelite sheet covered with 3 section Removable suitable Mattress.
  6. Positions Obtained/Function’s by Patient Hand Remote: Backrest, Hi – Low, Trendelenburg & Reverse Trendelenburg.
  7. Leg end section can slide under the main section.
  8. Height adjustable a pair of foam padded knee crutches.
  9. S.S Telescopic I.V. Rod with 4 hooks
  10. Detachable S.S. Tray
  11. Provided with adjustable S.S. Grip Handles on both sides.
  12. Finish: Pretreated and epoxy powder coated.

Dimensions (Approx.):

  • Overall Size: 2000L x 950W mm
  • Platform Size (full extended): 1900L x 660W
  • Platform Size (Leg section Slide under):1360L x 660W
  • Minimum Height (without Mattress): 680mm
  • Maximum Height (without Mattress): 960mm
  • Backrest angle: 60°
  •  TB / RTB: 9° / 12°



Model No.: USI - H7

LDR BED (Hydraulic)

Description:

  1. Foot operated Hydraulic System mechanism by stepping on the pedal located on either side of the table for Hi – Low adjustment.
  2. Backrest, Trendelenburg & Reverse Trendelenburg position Obtained by Smooth Crank System with S.S. Foldable Handle behind head end.
  3. Heavy PP Head Panel with metal inserts along with lock and corner buffer.
  4. PP Moulded two Pieces individual Side Rails.
  5. Tubular framework mounted on 125mm (5”) Central locking castors.
  6. Three-section top made of Bakelite sheet covered with Removable suitable Mattress.
  7. Leg end section can slide under the main section.
  8. Height adjustable a pair of foam padded knee crutches.
  9. S.S Telescopic I.V. Rod with 4 hooks
  10. Detachable S.S. Tray
  11. Provided with adjustable S.S. Grip Handles on both sides.
  12. Finish: Pretreated and epoxy powder coated.



Dimensions (Approx.):

  •     Overall Size: 2000L x 950W mm
  •     Platform Size (full extended): 1900L x 660W
  •     Platform Size (Leg section Slide under): 360L x 660W
  •     Minimum Height (without Mattress): 670mm
  •     Maximum Height (without Mattress): 920mm
  •     Backrest angle: 50°

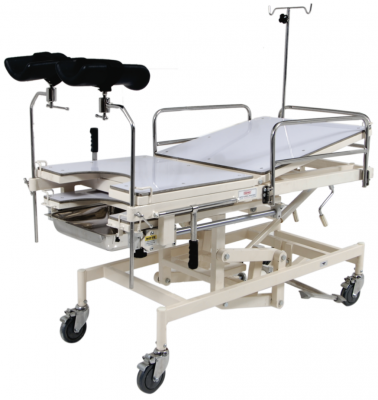

Model No.: USI - 1091

OBSTETRIC LABOUR TABLE (Adjustable Height)

Description:

  1. Foot operated Hydraulic System mechanism by stepping on the pedal located on either side of the table for Hi – Low adjustment.
  2. Backrest, Trendelenburg & Reverse Trendelenburg position Obtained by Smooth Crank System with S.S. Foldable Handle behind head end.
  3. Stainless steel Swing away type Head Panel along with safety side Rails.
  4. Tubular framework mounted on 125mm (5”) Castors(all with Lock).
  5. Three-section top made of Bakelite sheet covered with Removable suitable Mattress.
  6. Leg end section can slide under the main section.
  7. Height adjustable a pair of foam padded knee crutches.
  8. S Telescopic I.V. Rod with 4 hooks
  9. Detachable S.S. Tray
  10. Provided with adjustable S.S. Grip Handles on both sides.
  11. Finish: Pretreated and epoxy powder coated.

Dimensions:

  1. Overall Size: 1900L x 900W mm
  2. Platform Size (full extended): 1800L x 660W mm
  3. Platform Size (Leg section Slide under): 1260L x 660W mm
  4. Minimum Height (without Mattress): 670 mm
  5. Maximum Height (without Mattress): 920 mm
  6. Backrest angle: 50°
  7. TB / RTB: 9° / 12°





USI – 1091B : – Also Available in Stainless Steel Frame



Model No.: USI - 1090

OBSTETRIC LABOUR TABLE (Fixed Height)

Description:

  1. Backrest, Trendelenburg & Reverse Trendelenburg position Obtained by Smooth Crank System with S.S. Foldable Handle behind head end.
  2. Stainless steel Swing away type Head Panel along with safety side Rails.
  3. Stainless steel Tubular framework mounted on PVC stumps/shoes.
  4. Three-section top made of Bakelite sheet covered with Removable suitable Mattress.
  5. Leg end section can slide under the main section.
  6. Height adjustable a pair of foam padded knee crutches.
  7. S Telescopic I.V. Rod with 4 hooks.
  8. Detachable S.S. Tray
  9. Provided with adjustable S.S. Grip Handles on both sides.
  10. Finish: Stainless steel.

Dimensions:

  • Overall Size: 1900L x 900W x 760H  mm
  • Platform Size (full extended): 1800L x 660W mm
  • Platform Size (Leg section Slide under): 1260L x 660W mm
  • Backrest angle: 50°
  • TB / RTB: 9° / 12°



USI – 1090A : – Also Available in M.S. Pretreated & Epoxy powder coated Frame

Model No.: USI - 1093

OBSTETRIC DELIVERY TABLE (3 section)

Description:

  1. Rectangular & square tube frame work mounted on PVC stumps
  2. Three sections fixed cushioned top
  3. Backrest, Seat & Leg section adjustable by hand lever
  4. Provided with SS bowls
  5. Height adjustable a pair of knee crutches.
  6. Knockdown construction.
  7. Finish: Pre treated & Epoxy Powder Coated.
  8. Overall Size (Approx.): 1800L x 555W x 760H mm

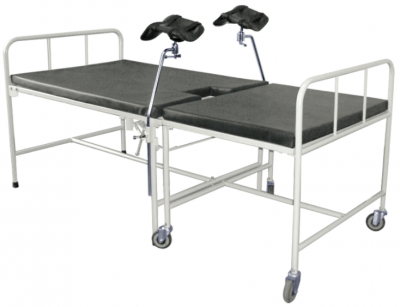

Model No.: USI - 1092

OBSTETRIC DELIVERY BED (in 2 parts & 2 section)

Description:

  1. Tubular frame work made in two section
  2. Body section with legs mounted on PVC stumps/shoes.
  3. Leg section on 100mm (4”) Diagonal locking castors.
  4. Two section fixed cushioned top.
  5. Height adjustable a pair of knee crutches.
  6. Knockdown construction.
  7. Finish: Pre treated & Epoxy powder coated.
  8. Overall Size (Approx.): 1800L x 760W x 760H mm.

Model No.: USI - 1097

DELIVERY BED (Telescopic)

Description:

  1. Bed, Labour & Delivery made in 2 section, body section with legs mounted on PVC stumps/shoes.
  2. Leg section mounted on 100mm (4”) Castors with brakes.
  3. Leg section can be completely recessed under the body section supports for legs holders with solid mechanism to fix leg holders at required height & width
  4. Filled mattress – pad and cover mattress pad in 2 section.
  5. Supplied with 2 knee crutches adjustable in height & width
  6. Knockdown construction.
  7. Finish: Pretreated & Epoxy powder coated.



  1. Overall Size (Approx.):
  •    (a) Body section : 1000L x 800W x 750H mm
  •    (b) Leg section : 900L mm.



Model No.: USI - 1038

BABY CRADLE

Description:

  1. Stand framework made of 25 mm x 1.22 mm M.S. tubular pipe
  2. Legs fitted with PVC Stumps
  3. Wire mesh hanging cradle made of 19 mm x 1.22 mm CRC Tube and wire mesh on 5 mm thick.
  4. Provided with suitable mattress.
  5. Finish: Pre-treated and Epoxy Powder Coated
  6. Overall Size: 910L x 460W x 910H mm

Model No.: USI - 1041

BABY BASSINET

Description:

  1. Preprex transparent Crib with 50mm (2”) Mattress.
  2. Trendelenburg & Reverse Trendelenburg adjustable Manually by hand.
  3. M.S. Framework mounted on 50 mm (2”) Castors
  4. Provided with S.S. I.V. Rod
  5. Wooden Laminated Shelf at the bottom.
  6. Provided with suitable mattress.
  7. Finish: Pretreated & Epoxy powder coated
  8. Overall Size: 760L x 460W x 810H mm

Model No.: USI - 1042

BABY BASSINET (with utility box)

Description:

  1. Preprex transparent Crib with 50mm (2”) Mattress.
  2. Trendelenburg & Rev. Trendelenburg adjustable by knob.
  3. M.S. Framework mounted on 50 mm (2”) Castors
  4. Provided with S.S. I.V. Rod
  5. Wooden Laminated Cupboard with Shelf provided at the bottom.
  6. Provided with suitable mattress.
  7. Finish: Pretreated & Epoxy powder coated
  8. Overall Size: 760L x 460W x 810H mm
