Ward Equipment's

Model No.: USI - 1028

BED SIDE SCREEN (3 panels)

Description:

  1. M.S. Tubular framework made of 19mm x 18G in Four section.
  2. Legs made of 25mm x 18G mounted on 50mm castors with hooks and spring wire along with curtains.
  3. Each span 810mm wide.
  4. Finish: Pre-treated and Epoxy Powder Coated
  5. Overall Size: 1680H x 2450L mm

Model No.: USI - 1027

BED SIDE SCREEN (4 panels)

Description:

  1. M.S. Tubular framework made of 19mm x 18G in Four section.
  2. Legs made of 25mm x 18G mounted on 50 mm castors with hooks and spring wire along with curtains.
  3. Each span 610mm wide.
  4. Finish: Pre-treated and Epoxy Powder Coated
  5. Overall Size : 1680H x 2450L mm.

Model No.: USI - 1030

FOOT STEP (Double)

Description:

  1. Frame made of 1” x 18G CRCA Tube fitted with PVC Stumps/Shoes.
  2. Step made of M.S. Top fitted with Aluminum strips
  3. Finish: Pre treated and Epoxy Powder Coated
  4. Overall Size (Approx.): 600L x 505W x 450H mm.
  5. First step height 230 mm and second step 220mm.

USI – 1030A :  Also available in S.S. Frame work

Model No.: USI - 1029

FOOT STEP (Single)

Description:

  1. Frame made of 1” x 18G CRCA Tube fitted with PVC Stumps/Shoes.
  2. Step made of M.S. Top fitted with Aluminum strips.
  3. Finish: Pre treated and Epoxy Powder Coated
  4. Overall Size (Approx.): 450L x 270W x 240H mm.

USI – 1029A :  Also available in S.S. Frame work

Model No.: USI - 1039

INFUSION STAND

Description:

  1. Stainless Steel Pipe & Base fitted with 50mm (2”) castors.
  2. Provided with 5 Power cords and one Junction box.
  3. Supplied in Knock down Construction.



Model No.: USI - 1045

INSTRUMENT CABINET

Description:

  1. Made from CRC sheet, three side closed
  2. Front glass door and corners covered with CRC sheet.
  3. Inside 4 glass shelves.
  4. Finish: Pre-treated and Epoxy Powder Coated
  5. Overall Approx. Size: 1470H x 600L x 350W mm.

Model No.: USI - 1032

KICK BOWL

Description:

  1. Approx. S.S. Bowl of 340 mm dia
  2. Frame work made of SS Tubes
  3. Mounted on 50mm (2”) castors
  4. Finish: Stainless Steel.
  5. Overall Size (Approx.) : 340 mm Dia x 310H mm

Model No.: USI - 1033

KICK BUCKET

Description:

  1. S.S. Bucket of 350 mm dia
  2. Frame work made of SS Tubes
  3. Mounted on 50mm (2”) castors
  4. Finish: Stainless Steel.
  5. Overall Size (Approx.): 350 Dia x 310H mm

Model No.: USI - 950

LAB TECHNICIAN STOOL

Description:

  1. Fixed cushioned seat
  2. Height adjustable by gas spring from 510 to 650 mm
  3. 5 legs Plastic base mounted on 50 mm (2”) castors

Model No.: USI - 1075

REVOLVING STOOL (Cushioned Top)

Description:

  1. Four legs M.S. base fitted with PVC Stumps/Shoes
  2. Height adjustable by machine screw from 540mm to 735mm.
  3. Footrest ring support made of MS Tube
  4. Cushioned top support with MS Circle
  5. Finish: Pre treated and Epoxy Powder Coated
  6. Overall Size (Approx.): 460Lx 460W x 540H mm



USI – 1075B:  Also available in S.S. Frame work

Model No.: USI - 1036

REVOLVING STOOL (SS Top)

Description

  1. Height adjustable Round Shaped Revolving Stool.
  2. Height Adjustability Range: 450 mm to 650 mm
  3. Diameter : 300 mm.
  4. Size of under structure frame : 1.2 mm.
  5. Stainless Steel (SS) Stool top base thickness : 0.8 mm.
  6. Leg shoe made of rubber material.
  7. Under structure of the stool made of Mild Steel Material with Epoxy Powder-coated finish.
  8. 4 No. of legs in the under structure.
  9. No any sharp edges and irregular surfaces to prevent any harm to patient.

Model No.: USI - 1037C

SALINE STAND

Description:

  1. 02 Nos. of hooks on rod are provided.
  2. 50 mm dia. non rusting Castor wheels.
  3. 04 Nos. of castor wheels.
  4. 02 Nos. of castor with brake.
  5. Tubular pipe frame.
  6. Height adjustable of the rod with top knob : 1350-2450 mm
  7. 10 mm dia. SS rod.
  8. Stainless Steel (SS) Grade 304 Material of frame.
  9. Stainless Steel (SS) Grade 304 Material of rod.
  10. Stainless Steel (SS) Grade 304 Material of base frame.
  11. Overall weight of saline stand : 7 kg.

Quality Standard Certification:

All the certificates as “General Requirement for all items” under “Product & Manufacturer Quality Standards”.

Model No.: USI - 1031

STOOL

Description:

  1. Top made of CRCA M.S. Sheet double bent
  2. Legs made of 25 mm x 18 G CRCA Tube fitted with PVC Stumps/Shoes.
  3. Finish: Pre treated and Epoxy Powder Coated
  4. Overall Size (Approx.): 350L x 350W x 490H mm
  5. Top Size (Approx.): 310L x 310W mm

Model No.: USI - 1056

SURGEON CHAIR (Electric)

Description:

  1. Fixed Cushioned seat and back.
  2. Height adjustable by electric foot rest of 130 mm stroke.
  3. Swinging back rest.
  4. Hand rest adjustable.
  5. Aluminum 5 legs Base.
  6. Base fitted with 50 mm (2”) Castors
  7. Overall Size: 630L x 600W x 780-910H mm.

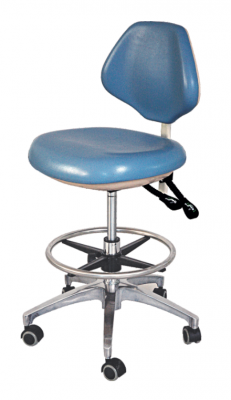

Model No.: USI - 1055

SURGEON CHAIR (Manual)

Description:

  1. Fixed Cushioned seat and back.
  2. Height adjustable from 540 mm to 660 mm
  3. Swinging back rest and can be locked at any position
  4. Aluminum 5 legs Base with S.S. foot ring
  5. Base fitted with 50 mm (2”) Castors

Model No.: USI - 802

WAITING AREA CHAIR

Description:

  1. Perforated Sheet M.S. Sheet
  2. Solid Aluminum alloy Armrest and legs
  3. Set of 3 seats
  4. Finish: Pretreated & Epoxy Powder Coated
  5. Overall Size: 1675L x 710W x 775H mm
  6. Optional Accessories : Cushioned Top, Hand rest
  7. Available in 4 / 3 / 2 / 1 seater

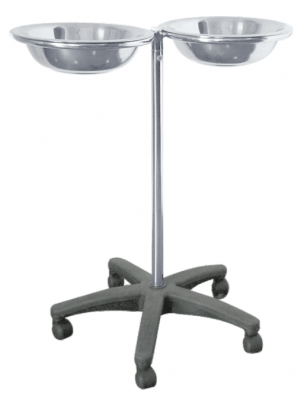

Model No.: USI - 1044

WASH BASIN STAND (double)

Description:

  1. Five legs base mounted on 5cms dia castors.
  2. Basin holder SS tube made of 16mm x 18G. Provided with Two approx. 350 mm S.S. Basin
  3. Vertical SS tube made of 25mm x 18G
  4. Finish: Stainless Steel frame with Stainless Steel Basin

Model No.: USI - 1046

WASH BASIN STAND (single)

Description:

  • Five legs base mounted on 50mm dia. castors.
  • Basin holder SS tube made of 16 mm x 18 G . Provided with one SS Bowl of approx. 275 mm x 125 mm dia. and capacity of approx..300 ml.
  • Vertical SS tube made of 25 mm x 18 G
  • Finish: Stainless Steel frame with Stainless Steel Basin.
  • Height of the Stand: 815 mm.

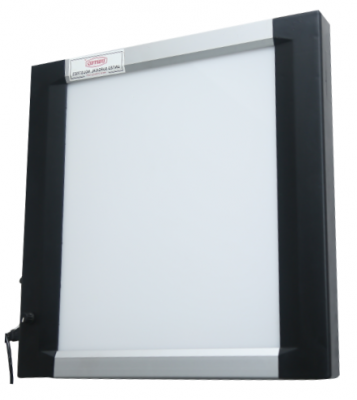

Model No.: USI - 973

X-RAY VIEW BOX (LED)

Description:

1.   Frame work made of Aluminium Sheet.

2.   Slimmest design 25mm thin.

3.   Sensor based as well on direct basis.

4.   Provided features : On/Off, Lux intensity adjustable by digital/dimmer.

Available sizes

(a)  One Film

(b) Two Film

(c)  Three Film



(d) Four Film

Model No.: USI - 972

X-RAY VIEW BOX (LED)

Description:

1.   Frame work made of Aluminium Sheet.

2.   Provided features : On/Off, Lux intensity adjustable by dimmer.

Available sizes

(a)  One Film

(b) Two Film

(c)  Three Film

(d) Four Film

Model No.: USI - 971

X-RAY VIEW BOX (LED)

Description:

1.   Frame work made of MS Sheet.

2.   Only On/Off feature.

Available sizes

(a)  One Film

(b) Two Film

(c)  Three Film

(d) Four Film
